sandbox/Antoonvh/test_conv.c
Do the adaptive discretizations of nsf4t.h
work?
We test convergence by tuning the refinement criterion. The test case is the flow field of a “Gaussian vortex”;
\displaystyle v_\theta = r e^{-r^2}, \displaystyle v_r = 0.
The effective resolution N_{\mathrm{eff}} is defined as:
\displaystyle N_{\mathrm{eff}} = \sqrt{\# Cells}.
set xr [15:512]
set logscale x 2
set logscale y 10
set xlabel 'N_{effective}'
set ylabel 'error'
set grid
set size square
fit [1:] a*x + b 'log' u (log($1)):(log($2)) via a, b
fit [1:] c*x + d 'log' u (log($1)):(log($3)) via c, d
plot 'log' u 1:2 t 'L_1', '' u 1:3 t 'L_{inf}',\
exp(b)*x**(a) t sprintf("%.0fN^{%4.2f}", exp(b),a),\
exp(d)*x**(c) t sprintf("%.0fN^{%4.2f}", exp(d),c)
fit [1:] a*x + b 'log' u (log($1)):(log($4)) via a, b
fit [1:] c*x + d 'log' u (log($1)):(log($5)) via c, d
plot 'log' u 1:4 t 'L_1', '' u 1:5 t 'L_{inf}',\
exp(b)*x**(a) t sprintf("%.0fN^{%4.2f}", exp(b),a),\
exp(d)*x**(c) t sprintf("%.0fN^{%4.2f}", exp(d),c)
fit [1:] a*x + b 'log' u (log($1)):(log($6)) via a, b
fit [1:] c*x + d 'log' u (log($1)):(log($7)) via c, d
plot 'log' u 1:6 t 'L_1', '' u 1:7 t 'L_{inf}',\
exp(b)*x**(a) t sprintf("%.0fN^{%4.2f}", exp(b),a),\
exp(d)*x**(c) t sprintf("%.0fN^{%4.2f}", exp(d),c)
fit [1:] a*x + b 'log' u (log($1)):(log($8)) via a, b
fit [1:] c*x + d 'log' u (log($1)):(log($9)) via c, d
plot 'log' u 1:8 t 'L_1', '' u 1:9 t 'L_{inf}',\
exp(b)*x**(a) t sprintf("%.0fN^{%4.2f}", exp(b),a),\
exp(d)*x**(c) t sprintf("%.0fN^{%4.2f}", exp(d),c)
fit [1:] a*x + b 'log' u (log($1)):(log($10)) via a, b
fit [1:] c*x + d 'log' u (log($1)):(log($11)) via c, d
plot 'log' u 1:10 t 'L_1', '' u 1:11 t 'L_{inf}',\
exp(b)*x**(a) t sprintf("%.0fN^{%4.2f}", exp(b),a),\
exp(d)*x**(c) t sprintf("%.0fN^{%4.2f}", exp(d),c)
The convergence is OK when the PDE has a small prefactor for the term with second derivatives (i.e. the viscosity for the Navier-Stokes eqs.)
#include "nsf4t.h"
scalar * tracers = NULL;
#define funcux (-y*exp(-sq(x) - sq(y)))
#define funcuy ( x*exp(-sq(x) - sq(y)))
double funu_x (double x, double y) {
return funcux;
}
double funu_y (double x, double y) {
return funcuy;
}
double dfunux_x (double x, double y) {
return 2.*x*y*exp(-sq(x) - sq(y));
}
double dfunux_y (double x, double y) {
return (2.*sq(y) - 1)*exp(-sq(x) - sq(y));
}
double dfunuy_x (double x, double y) {
return (1 - 2.*sq(x))*exp(-sq(x) - sq(y));
}
double dfunuy_y (double x, double y) {
return -2*x*y*exp(-sq(x) - sq(y));
}
double d2funux_x (double x, double y) {
return (2*y - 4.*sq(x)*y)*exp(-sq(x) - sq(y));
}
double d2funux_y (double x, double y) {
return (6*y - 4.*cube(y))*exp(-sq(x) - sq(y));
}
double d2funuy_x (double x, double y) {
return (4.*cube(x) - 6*x)*exp(-sq(x) - sq(y));
}
double d2funuy_y (double x, double y) {
return (4.*sq(y)*x - 2*x)*exp(-sq(x) - sq(y));
}
The Corresponding proportional pressure field, see.
double pressure (double x, double y) {
return exp(-2*(sq(x) + sq(y)))/4.;
}
double dp_x (double x, double y) {
return -x*exp(-2*(sq(x) + sq(y)));
}
double dp_y (double x, double y) {
return -y*exp(-2*(sq(x) + sq(y)));
}
double ue, expo = 1.;
int main() {
L0 = 15.;
X0 = -L0/2. + pi/25.;
Y0 = -L0/2. - exp(1.)/25.;
N = 8;
run();
}
event check_errors (i = 0) {
for (ue = 1e-1; ue > 1e-9; ue /= 4) {
do {
foreach_face()
u.x[] = Gauss6_x (x, y, Delta, funu_x);
boundary ((scalar*){u});
} while (adapt_flow (ue, 99, expo).nf > 1);
double e1 = 0, einf = -1;
vector v[];
foreach_dimension() {
v.x.prolongation = refine_vert5;
v.x.restriction = restriction_vert;
}
// Face to vertex
foreach() {
foreach_dimension() {
v.x[] = FACE_TO_VERTEX_4(u.x);
double el = fabs(funu_x(x - Delta/2, y - Delta/2) - v.x[]);
e1 += el*sq(Delta);
if (einf < el)
einf = el;
v.x[] = funu_x(x - Delta/2, y - Delta/2); //...
}
}
boundary ((scalar*){v});
vector * grads = NULL;
for (scalar s in {v}) {
vector dsd = new_vector ("gradient");
grads = vectors_add (grads, dsd);
}
for (vector grad in grads) {
foreach_dimension() {
grad.x.prolongation = refine_vert5;
grad.x.restriction = restriction_vert;
}
}
compact_upwind ((scalar*){v}, grads, v);
double u1d = 0, uinfd = -1;
// Gradients
foreach() {
vector gradux = grads[0];
vector graduy = grads[1];
foreach_dimension() {
double el = fabs (gradux.y[] -
dfunux_y (x - Delta/2., y - Delta/2));
u1d += sq(Delta)*el;
if (uinfd < el) {
uinfd = el;
}
el = fabs (graduy.y[] -
dfunuy_y (x - Delta/2., y - Delta/2));
u1d += sq(Delta)*el;
if (uinfd < el) {
uinfd = el;
}
}
}
double u1d2 = 0, uinfd2 = -1;
// double derivatives
foreach() {
scalar s = v.x;
foreach_dimension() {
double el = fabs (D2SDX2/sq(Delta) -
d2funux_x (x - Delta/2., y - Delta/2.));
u1d2 += sq(Delta)*el;
if (uinfd2 < el)
uinfd2 = el;
}
s = v.y;
foreach_dimension() {
double el = fabs (D2SDX2/sq(Delta) -
d2funuy_x (x - Delta/2., y - Delta/2.));
u1d2 += sq(Delta)*el;
if (uinfd2 < el)
uinfd2 = el;
}
}
double u1r = 0, uinfr = -1;
// Vertex to face
foreach_face() {
double el = fabs (Gauss6_x(x, y, Delta, funu_x)
- VERTEX_TO_FACE_4(v.x));
u1r += sq(Delta)*el;
if (uinfr < el)
uinfr = el;
}
// p.prolongation = refine_5th; for 4th order L_{inf}
foreach()
p[] = Gauss6 (x, y , Delta, pressure);
boundary ({p});
double uf1 = 0, ufinf = -1;
// Face gradient
foreach_face() {
double el = fabs ((p[-2,0] - 15.*p[-1,0] +
15.*p[0,0] - p[1,0])/(12*Delta) -
Gauss6_x (x, y, Delta, dp_x));
uf1 += sq(Delta)*el;
if (ufinf < el)
ufinf = el;
}
free (grads); grads = NULL;
fprintf (stderr,"%g %g %g %g %g %g %g %g %g %g %g\n",sqrt(grid->tn),
e1, einf, u1d, uinfd, u1d2, uinfd2, u1r, uinfr, uf1, ufinf);
}

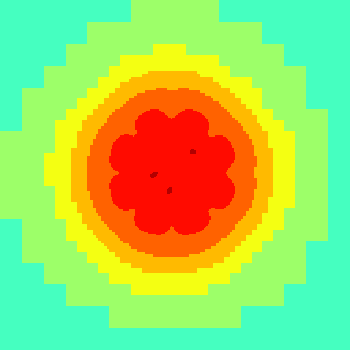

scalar lev[];
foreach()
lev[] = level;
output_ppm (lev, file = "lev.png", n = 350, max = depth() + 0.5);
return 1;
}
