sandbox/Antoonvh/visl2.c
Bwatch usage for visualization of a dump file
The dumpfile that contains a velocity field is generated on a super computer with MPI. We render the data on a local machine, accelerated with openMP.
#include "grid/octree.h"
#include "utils.h"
#include "bwatch.h"
#include "lambda2.h"
scalar dummy[];
vector uc[];
void vorticity3D (vector u, vector omg) {
foreach() {
foreach_dimension() {
omg.z[] += (u.y[1] - u.y[-1] -
u.x[0,1] + u.x[0,-1])/(2*Delta);
if (isnan(omg.z[])) //fixme
omg.z[] = 0.;
}
}
boundary ((scalar*){omg});
}
void swap_to_cylinder (vector a) {
foreach() {
double phi = fabs(x) > 0. ? atan(y/x) : pi/2.;
coord at = {a.x[], a.y[], a.z[]};
a.x[] = cos(phi)*at.x + sin(phi)*a.y[];
a.y[] = cos(phi)*at.y - sin(phi)*a.x[];
}
boundary ({a.x, a.y});
}
int main() {
//Obtain the dump file from elsewhere
system ("test -f download || wget https://surfdrive.surf.nl/files/index.php/s/2UgDG4iEjjZVaiL/download");
restore ("download");
scalar l2[];
vector omega[];
lambda2 (uc, l2);
vorticity3D (uc, omega);
swap_to_cylinder (omega);
foreach()
l2[] = l2[] > 0 ? 0 : -l2[];
boundary ({l2});
watch (fov = 50, nx = 2400, ny = 2400); //Highres
watch (O = {30, 30., 100}, poi = {10,10,0}, fov = L0/4);
volume (l2, cols = true, sc = 0.005, mval = 0.001,
min = -.1, max = .1, shading = 1);
lattice(width = 0.02);
store (fopen("smkcells.ppm", "w"));
plain();
watch (O = {30, 30., 100}, poi = {0.01,0.01,0.01}, fov = 50);
volume (l2, cols = true, sc = 0.005, mval = 0.001,
colorv = omega, max = 10, shading = 1);
store (fopen("smkc.ppm", "w"));
plain();
volume (l2, cols = true, sc = 0.005, mval = 0.001,
min = -.1, max = .1, shading = 1);
store (fopen("smk.ppm", "w"));
plain();

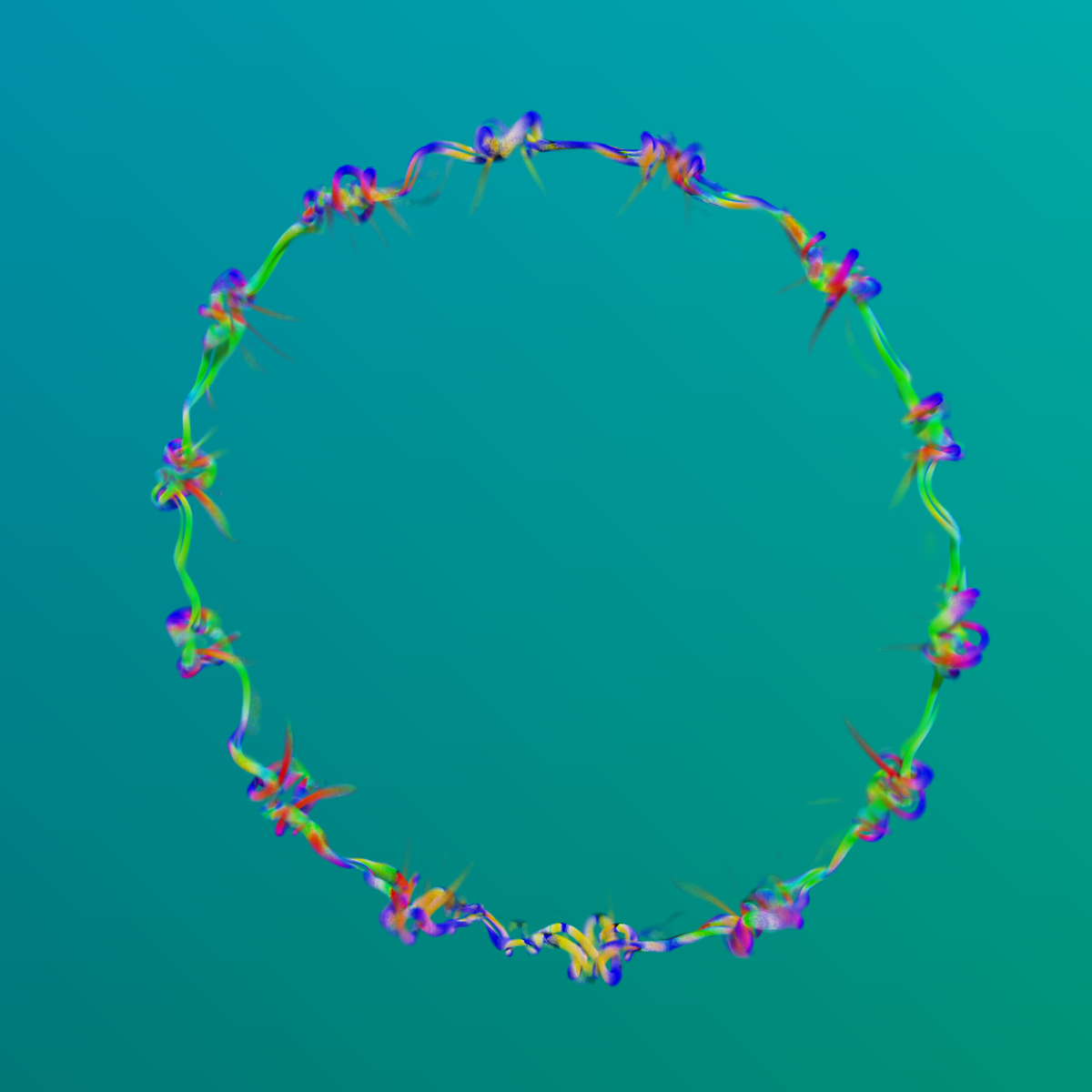

system( "convert smkc.ppm -resize 50% color_rings.png"); //4x MSAA

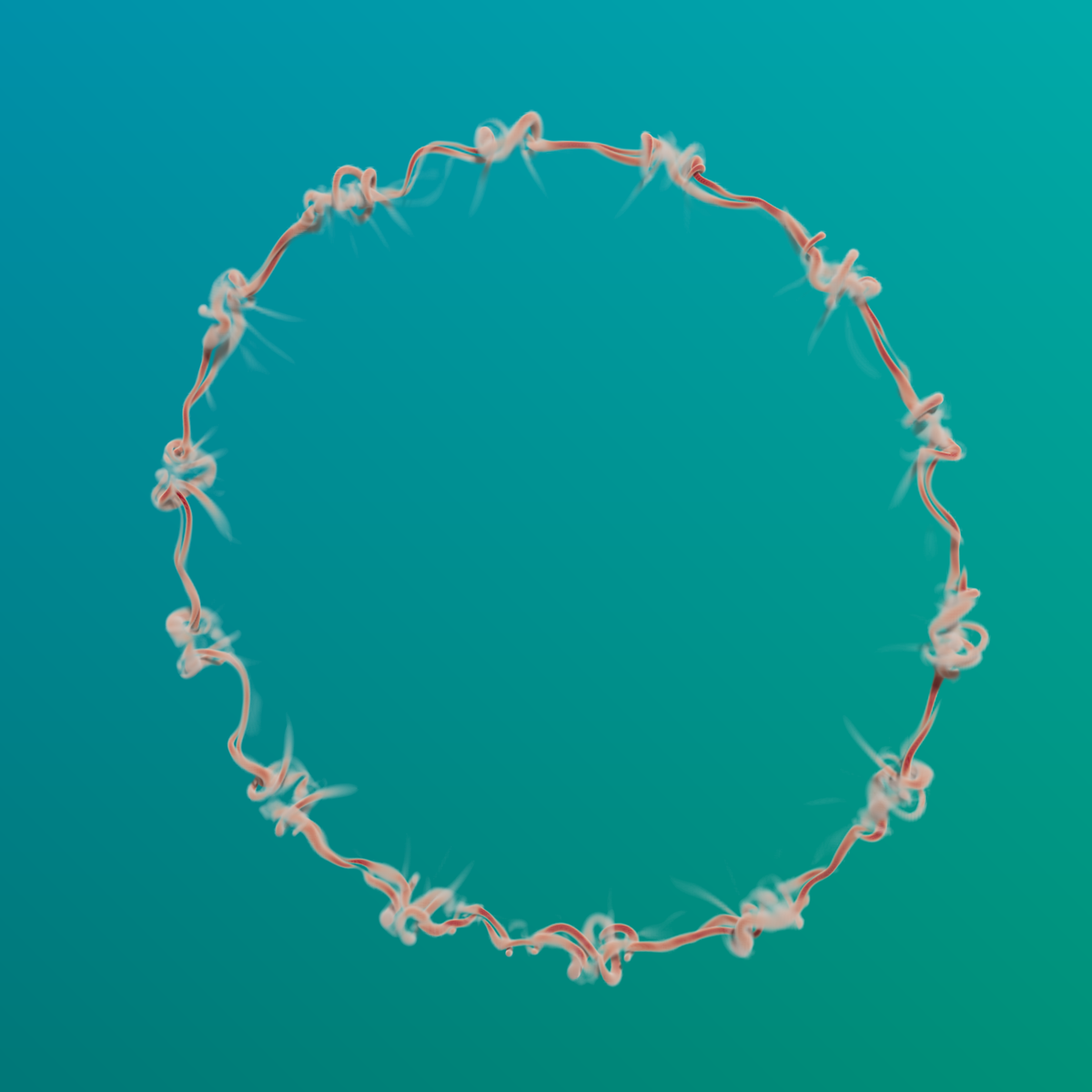

system( "convert smk.ppm -resize 50% rings.png"); //4x MSAA

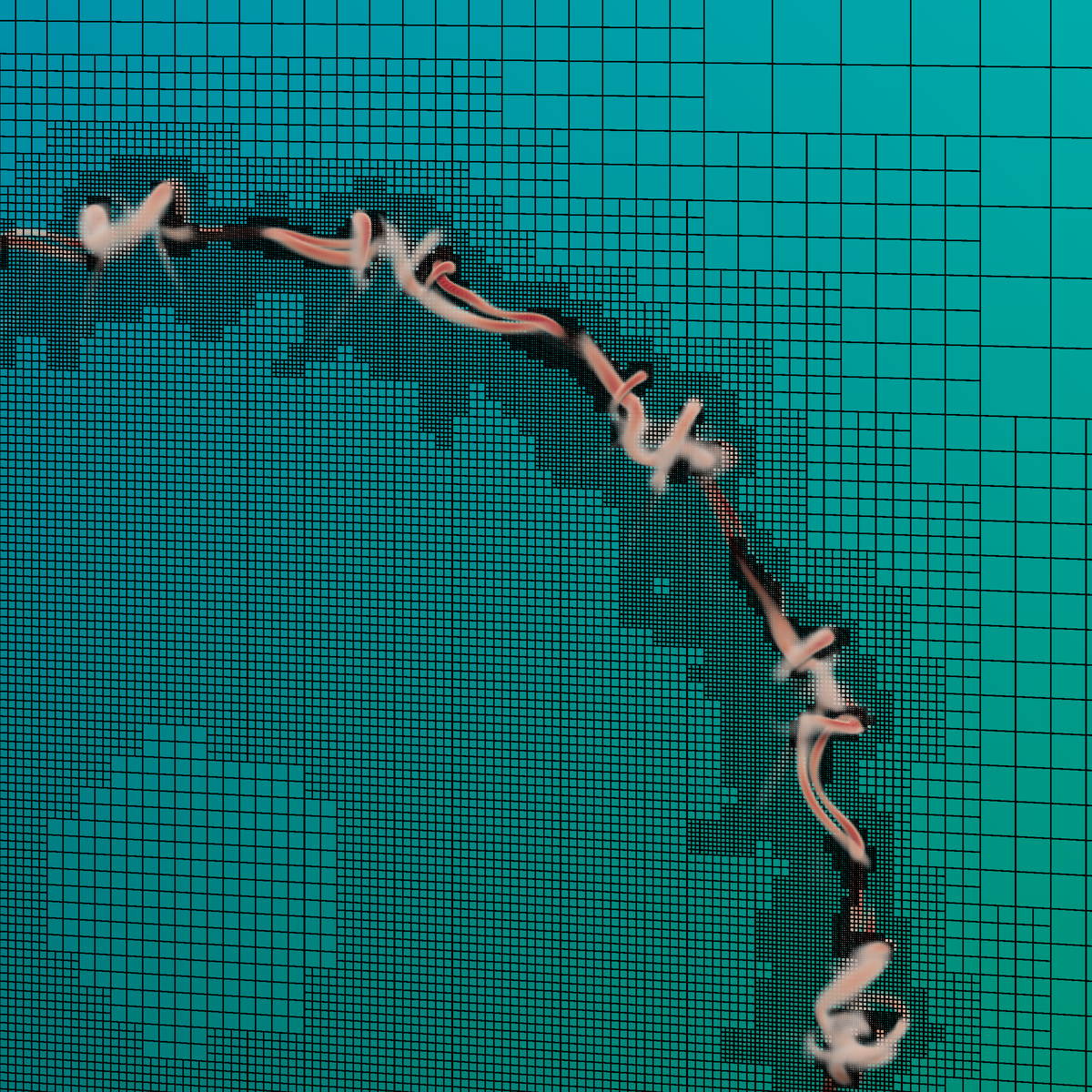

system( "convert smkcells.ppm -resize 50% rings_cells.png"); //4x MSAA
#if 0
watch (nx = 900, ny = 900);
FILE * fp = popen ("ppm2mp4 -r 20 mov.mp4", "w");
for (double a = 0; a <= 2*pi; a += 0.025*pi) {
watch (O = {100*sin(a), 30., 100*cos(a)});
volume (l2, sc = 0.01, mval = 0.001, col = {255, 20, 30});
sphere (R = 200, mat = {dull = true, col = {255, 255, 255}});
store (fp);
plain();
}
for (double a = 0; a <= 2*pi; a += 0.025*pi) {
watch (O = {100*sin(a), 30., 100*cos(a)});
equiplane (l2, 0.005, insideout = true,
mat = {v = uc, min = -0.05, max = 0.05});
sphere (R = 200, mat = {dull = true, col = {255, 255, 255}});
store (fp);
plain();
}
pclose(fp);
#endif
}
