    Hydrostatic balance with refined embedded boundaries in 3D

    This is very close to hydrostatic2.c but in 3D.

    #include "grid/octree.h"
    #include "embed.h"
    #include "navier-stokes/centered.h"
    #include "view.h"

    We use a similar porous medium as in /src/examples/porous3D.c.

    void porous (scalar cs, face vector fs)
    {
      int ns = 60; // 160, 80
      coord pc[ns];
      double R[ns];
      srand (0);
      double a = 0.5, b = 0.04;
      for (int i = 0; i < ns; i++) {
        foreach_dimension()
          pc[i].x = a*noise();
        R[i] = 2.*(0.02 + b*fabs(noise()));
      }

      vertex scalar phi[];
      foreach_vertex() {
        phi[] = HUGE;
        for (double xp = -L0; xp <= L0; xp += L0)
          for (double yp = -L0; yp <= L0; yp += L0)
    	for (double zp = -L0; zp <= L0; zp += L0)
    	  for (int i = 0; i < ns; i++)
    	    phi[] = intersection (phi[], (sq(x + xp - pc[i].x)
    					  + sq(y + yp - pc[i].y)
    					  + sq(z + zp - pc[i].z)
    					  - sq(R[i])));
        phi[] = - phi[];
      }
      fractions (phi, cs, fs);
      fractions_cleanup (cs, fs);
    }

    const face vector G[] = {1.,2.,3.};

    void restriction_exact (Point point, scalar s)
    {
      s[] = (cs[] != 0.)*(G.x[]*x + G.y[]*y + G.z[]*z); // exact pressure
    }

    void refine_exact (Point point, scalar s)
    {
      foreach_child()
        s[] = (cs[] != 0.)*(G.x[]*x + G.y[]*y + G.z[]*z); // exact pressure
    }

    int main()
    {
      init_grid (1 << 5);
      origin (-0.5, -0.5, -0.5);

    The events of the Navier-Stokes solver are called “by hand”.

      event ("metric");
      event ("defaults");

      porous (cs, fs);

    #if 0
      refine (level < 7 && cs[] > 0 && cs[] < 1);
      porous (cs, fs);
    #else
      adapt_wavelet ({cs}, (double[]){0.01}, 7);
      porous (cs, fs);
      adapt_wavelet ({cs}, (double[]){0.01}, 7);
      porous (cs, fs);
    #endif

      a = G;

      TOLERANCE = 1e-9;
      NITERMAX = 10;
      alpha = fm;
      dt = 1.;

      foreach()
        p[] = (cs[] != 0.)*(G.x[]*x + G.y[]*y + G.z[]*z); // exact pressure
    #if 0
      p.restriction = restriction_exact;
      p.refine = p.prolongation = refine_exact;
      p.dirty = true;
    #endif

      event ("acceleration");
    #if 1
      event ("projection");
    #else
      foreach_face()
        uf.x[] -= alpha.x[] ? dt*alpha.x[]*face_gradient_x (p, 0) : 0.;

      face vector gf[];
      foreach_face()
        gf.x[] = fm.x[] ? fm.x[]*a.x[] - alpha.x[]*(p[] - p[-1])/Delta : 0.;

      trash ({g});
      foreach()
        foreach_dimension()
          g.x[] = (gf.x[] + gf.x[1])/(fm.x[] + fm.x[1] + SEPS);

      correction (dt);
    #endif

    We check the convergence rate and the norms of the velocity field (which should be negligible).

      fprintf (stderr, "mgp %.10f %.10f %d %d %d\n",
    	   mgp.resb, mgp.resa, mgp.i, mgp.minlevel, mgp.nrelax);
      fprintf (stderr, "umax %.12f %.12f %.12f %.12f %.12f\n",
    	   normf(u.x).max, normf(u.y).max,
    	   normf(uf.x).max, normf(uf.y).max, normf(uf.z).max);

    The pressure is hydrostatic, in each of the pores.

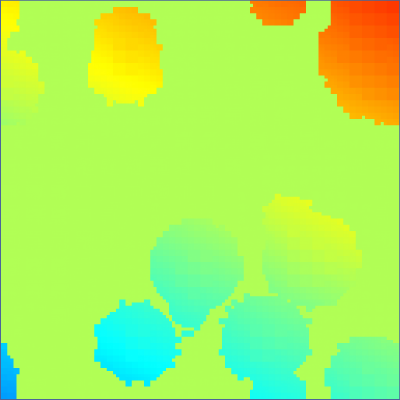

    Cross-section of the pressure field.

    Cross-section of the pressure field.

      view (fov = 19, width = 400, height = 400);
      squares ("p", spread = -1);
      save ("p.png");

      p.nodump = false;
      scalar ep[];
      foreach()
        ep[] = p[] - (cs[] != 0.)*(G.x[]*x + G.y[]*y);
      dump ();

    #if 0
      p[bottom] = dirichlet (y);
      foreach() {
        if (cs[] > 0.)
          printf ("%g %g %g %g %g %g %g %g %g %g %g\n",
    	      x, y, z, p[], u.x[], u.y[], u.z[], g.x[], g.y[], g.z[], cs[]);
        p[] = G.x[]*x + G.y[]*y;
      }

      foreach_face (x)
        printf ("fx %g %g %g %g\n", x, y, z, face_gradient_x (p, 0));
      foreach_face (y)
        printf ("fy %g %g %g %g\n", x, y, z, face_gradient_y (p, 0));
      foreach_face (z) {
        int i = 0;
        if (fs.z[0,0,i] > 0. && fs.z[0,0,i] < 1. &&
    	embed_face_gradient_z (point, p, i) != 0.) {
          printf ("fz %g %g %g %g %g\n", x, y, z, (p[0,0,i] - p[0,0,i-1])/Delta,
    	      embed_face_gradient_z (point, p, i));
          scalar a = p;
          {
    	coord p = embed_face_barycentre_z (point, i);
    	int j = sign(p.x), k = sign(p.y);
    	printf ("bary %g %g %g %d %d\n", p.x, p.y, p.z, j, k);
    	p.x = fabs(p.x), p.y = fabs(p.y);
    	printf ("valz %g\n",
    		(((a[0,0,i] - a[0,0,i-1])*(1. - p.x) +
    		  (a[j,0,i] - a[j,0,i-1])*p.x)*(1. - p.y) +
    		 ((a[0,k,i] - a[0,k,i-1])*(1. - p.x) +
    		  (a[j,k,i] - a[j,k,i-1])*p.x)*p.y)/Delta);
    	for (int l = -1; l <= 1; l++)
    	  for (int m = -1; m <= 1; m++)
    	    printf ("point %d %d %g %g %g %g\n", l, m, fs.z[l,m,i],
    		    (a[l,m,i] - a[l,m,i-1])/Delta, a[l,m,i], a[l,m,i-1]);
    	exit (1);
          }
        }
      }
    #endif
    }
