# Kuramoto–Sivashinsky equation

Duchemin et Eggers, JCP 263, 37–52, 2014, section 6 propose to use their “Explicit-Implicit-Null” method to solve the Kuramoto–Sivashinsky equation \displaystyle \partial_t u = -u \partial_x u - \partial^2_x u - \partial^4_x u while avoiding the stringent explicit timestep restriction due to the fourth derivative.

In this example we show that this can also be done using the implicit multigrid solver.

#include "grid/multigrid1D.h"
#include "poisson.h"

static double residual_kuramoto (scalar * al, scalar * bl, scalar * resl,
void * data)
{
scalar u = al[0], b = bl[0], res = resl[0];
double dt = *((double *)data);
double maxres = 0.;
foreach (reduction(max:maxres)) {
res[] = b[] - u[]
- dt*(u[-1] - 2.*u[] + u[1])/sq(Delta)
- dt*(u[-2] - 4.*u[-1] + 6.*u[] - 4.*u[1] + u[2])/sq(sq(Delta));
if (fabs (res[]) > maxres)
maxres = fabs (res[]);
}
boundary (resl);
return maxres;
}

static void relax_kuramoto (scalar * al, scalar * bl, int l, void * data)
{
scalar u = al[0], b = bl[0];
double dt = *((double *)data);
foreach_level_or_leaf (l)
u[] = (b[]
- dt*(u[-1] + u[1])/sq(Delta)
- dt*(u[-2] - 4.*u[-1] - 4.*u[1] + u[2])/sq(sq(Delta)))/
(1. - 2.*dt/sq(Delta) + 6.*dt/sq(sq(Delta)));
}

mgstats solve (scalar u, double dt)
{
scalar b[];
foreach()
b[] = u[] - dt*u[]*(u[1] - u[-1])/(2.*Delta);
boundary ({b});
return mg_solve ({u}, {b}, residual_kuramoto, relax_kuramoto, &dt);
}

This is the simple explicit discretisation (which is not used).

void solve_explicit (scalar u, double dt)
{
scalar du[];
foreach()
du[] = - u[]*(u[1] - u[-1])/(2.*Delta)
- (u[-1] - 2.*u[] + u[1])/sq(Delta)
- (u[-2] - 4.*u[-1] + 6.*u[] - 4.*u[1] + u[2])/sq(sq(Delta));
foreach()
u[] += dt*du[];
boundary ({u});
}

int main()
{

We reproduce the same test case as in section 6.2 of Duchemin & Eggers.

  init_grid (512);
L0 = 32.*pi;
periodic (right);
scalar u[];
foreach()
u[] = cos(x/16.)*(1. + sin(x/16.));
boundary ({u});

The timestep is set to 0.1, which is significantly larger than that in Duchemin & Eggers (0.014).

  double dt = 1e-1;
//  double dt = 1.4e-4;
int i = 0;
TOLERANCE = 1e-6;
for (double t = 0; t <= 150; t += dt, i++) {
if (i % 1 == 0) {
foreach()
fprintf (stdout, "%g %g %g\n", t, x, u[]);
fputs ("\n", stdout);
}
fprintf (stderr, "%g %d\n", t, solve (u, dt).i);
//    solve_explicit (u, dt);
}
}

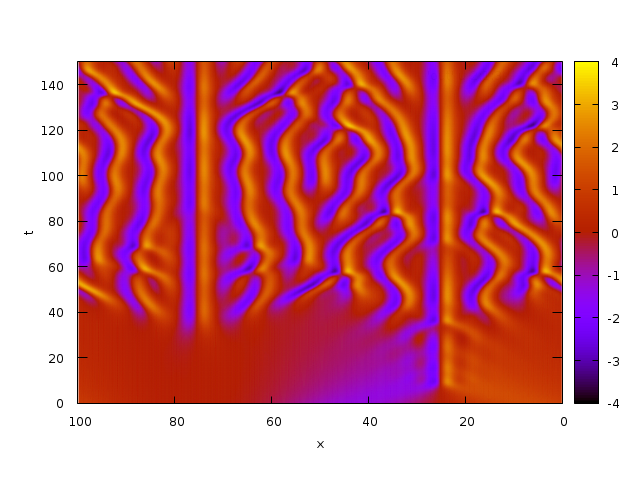

The result can be compared to Figure 8 of Duchemin & Eggers.

set term PNG enhanced font ",10"
set output 'sol.png'
set pm3d map
set xlabel 'x'
set ylabel 't'
set xrange [100:0]
set yrange [0:150]
splot 'out' u 2:1:3
