src/test/layered.c
Transcritical flow over a bump with multiple layers
We want to reproduce the transcritical test case of Audusse et al, 2011, section 5.6.2.
#include "grid/cartesian1D.h"
#include "saint-venant.h"
We need a field to store the variable bottom friction.
scalar lambda[];
The constant inflow flow rate (m^2/s).
const double Q = 1.;
The outlet water level.
const double Ho = 0.6;
int main() {
X0 = 0.;
L0 = 21. [1];
G = 9.81;
N = 256;
The viscosity is set to \nu = 0.01 m^2/s and the bottom friction is variable.
nu = 0.01;
lambda_b = lambda;
We vary the number of layers.
nl = 2; run();
nl = 5; run();
nl = 15; run();
}
We impose the outlet water level.
h[right] = dirichlet (Ho);
eta[right] = dirichlet (Ho);
Initialisation
We initialise the topography, the initial water depth h and we create a field hc to check convergence on h.
scalar hc[];
event init (i = 0) {
double a = 0.2, b = 5.75/2.;
foreach() {
zb[] = max(0., a*(1.[0] - sq((x - 10.)/b)));
hc[] = h[] = Ho - zb[];
}
Boundary conditions on velocity
We impose a constant flow rate Q
at the inlet and a Neumann condition at the outlet.
for (vector u in ul) {
u.n[left] = dirichlet(h[left] ? Q/h[left] : 0.);
u.n[right] = neumann(0.);
}
}
Bottom friction
We use the Strickler relation: \displaystyle k(h,\mathbf{U}) = \frac{g}{S^2h^{1/3}}|\mathbf{U}| with S = 25 m^{1/3}/s the Strickler coefficient, h the water depth and \mathbf{U} the depth-averaged velocity. Note that we have to use a lower Strickler coefficient (i.e. larger friction) to get results comparable to those of Audusse et al, 2011.
event friction (i++) {
foreach() {
double U = 0.;
int l = 0;
for (vector u in ul)
U += u.x[]*layer[l++];
double S = 25., k = G/(sq(S)*pow(h[],1./3.))*fabs(U);
lambda[] = k > 0. ? nu/k : 0.;
}
}
We check for convergence.
event logfile (t += 0.1; i <= 100000) {
double dh = change (h, hc);
if (i > 0 && dh < 1e-4)
return 1;
}
Uncomment this part if you want on-the-fly animation.
#if 0
event output (i++) {
static FILE * fp = popen ("gnuplot", "w");
fprintf (fp,
"set title 'nl=%d, t=%f'\n"
"set xl 'x'\nset yl 'h'\n"
"plot [0:21][] '-' u 1:2 w l t 'eta', '-' u 1:3 w l t 'zb'\n",
nl, t);
foreach()
fprintf (fp, "%g %g %g\n", x, eta[], zb[]);
fprintf (fp, "e\n");
fflush (fp);
}
#endif
Outputs
At the end of the simulation we save the profiles.
event output (t = end) {
char name[80];
sprintf (name, "end-%d", nl);
FILE * fp = nl == 15 ? stderr : fopen (name, "w");
foreach() {
fprintf (fp, "%g %g %g\n", x, eta[], zb[]);
if (nl == 15) {
double z = zb[];
int l = 0;
printf ("%g %g %g\n", x, z, u.x[]);
for (vector u in ul) {
z += layer[l++]*h[];
printf ("%g %g %g\n", x, z, u.x[]);
}
printf ("\n");
}
}
}
Results
set xr [0:21]
set yr [0:1]
set xlabel 'x'
set ylabel 'z'
plot 'end-2' u 1:3 w l t 'topography', \
'end-2' u 1:2 w l t '2 layers', \
'end-5' u 1:2 w l t '5 layers', \
'log' u 1:2 w l t '15 layers'
Free surface and topography. This can be compared to figure 9 of Audusse et al, 2011. (script)
set term PNG enhanced font ",10"
set output 'vel.png'
set pm3d
set pm3d map interpolate 10,1
unset key
# jet colormap
set palette defined ( 0 0 0 0.5647, 0.125 0 0.05882 1, 0.25 0 0.5647 1, \
0.375 0.05882 1 0.9333, 0.5 0.5647 1 0.4392, 0.625 1 0.9333 0, 0.75 1 0.4392 0, \
0.875 0.9333 0 0, 1 0.498 0 0 )
splot 'out' u 1:2:3

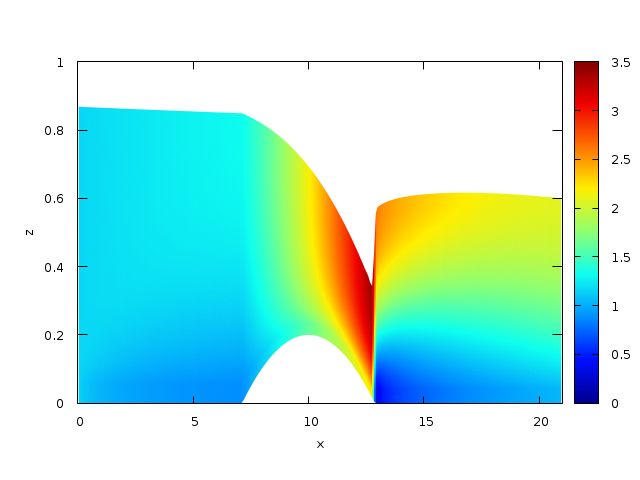

Horizontal velocity field (15 layers). (script)
