redistance-ellipse.c

Redistancing of a perturbed distance field
- References

Redistancing of a perturbed distance field

Test case originally written by Alexandre Limare.

This case is extracted from Russo et al., 2000. We initialize a perturbed distance field, where the zero levelset is an ellipse of the form \displaystyle \phi (x,y,0) = f(x,y) \times g(x,y) where the perturbation is \displaystyle f(x,y) = \epsilon + (x - x_0)^2 +(y - y_0)^2 and the ellipse is \displaystyle g(x,y) = \left( \sqrt{\frac{x^2}{A^2}+\frac{y^2}{B^2}} -R \right) with A=2, B=1, R = 1 , x_0 = 3.5, y_0 = 2..

We want to recover a perfect distance field, i.e. remove the initial perturbation.

We show here the initial and final level-set for the same isovalues.

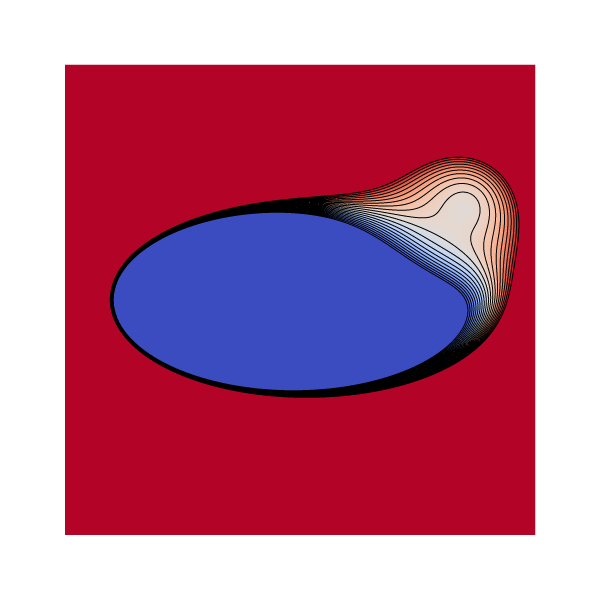

Initial distance field

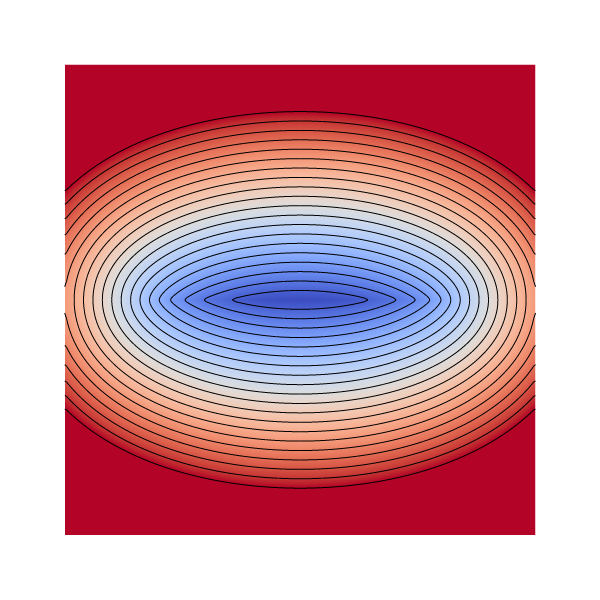

Final distance field

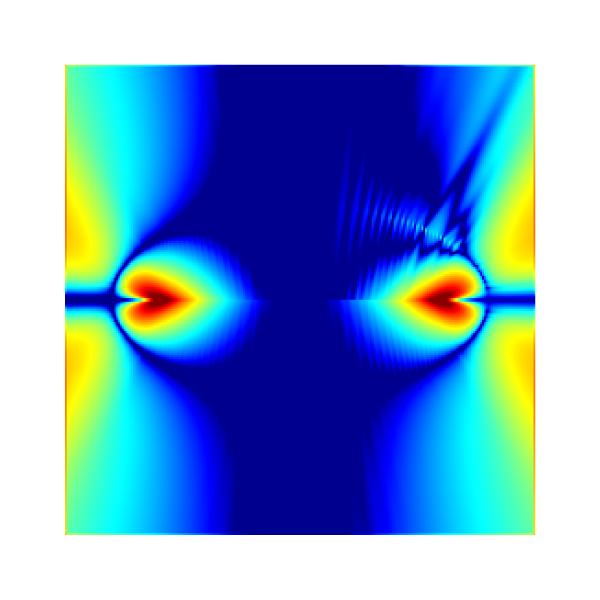

$Error, logscale between 10^{-4} and 10^{-1}$

Error, logscale between 10^{-4} and 10^{-1}

f(x) = a + b*x
f1(x) = a1 + b1*x
f2(x) = a2 + b2*x
fit f(x) 'log' u (log($1)):(log($2)) via a,b
fit f1(x) 'log' u (log($1)):(log($3)) via a1,b1
fit f2(x) 'log' u (log($1)):(log($4)) via a2,b2
ftitle(a,b) = sprintf("%.2f-%4.2f x", a, -b)
set logscale xy
set xrange [32:512]
set xtics 32,2,512
set format y "%.1e"
plot 'log' u 1:2 t 'avg', exp(f(log(x))) t ftitle(a,b), \
    'log' u 1:3 t 'rms', exp(f1(log(x))) t ftitle(a1,b1), \
    'log' u 1:4 t 'max', exp(f2(log(x))) t ftitle(a2,b2)

Error analysis (script)

f(x) = a + b*x
f1(x) = a1 + b1*x
f2(x) = a2 + b2*x
unset logscale
unset xrange
fit f(x) 'log' u (log($1)):(log($5)) via a,b
fit f1(x) 'log' u (log($1)):(log($6)) via a1,b1
fit f2(x) 'log' u (log($1)):(log($7)) via a2,b2
ftitle(a,b) = sprintf("%.2f-%4.2f x", a, -b)
set logscale xy
set xrange [32:512]
set xtics 32,2,512
set format y "%.1e"
plot 'log' u 1:5 t 'avg', exp(f(log(x))) t ftitle(a,b), \
    'log' u 1:6 t 'rms', exp(f1(log(x))) t ftitle(a1,b1), \
    'log' u 1:7 t 'max', exp(f2(log(x))) t ftitle(a2,b2)

Error analysis 0-level-set (script)

Here we study the value of the level-set function on a set of points where it is theoretically 0, we show that we have also a 3^{rd} convergence.
