src/test/rotation.c

    Pure rotation of a smooth tracer field

    set output 'error.png'
    set pm3d
    set pm3d map interpolate 1,1
    set palette defined ( 0 0 0 0.5647, 0.125 0 0.05882 1, 0.25 0 0.5647 1,\
         0.375 0.05882 1 0.9333, 0.5 0.5647 1 0.4392, 0.625 1 0.9333 0, \
         0.75 1 0.4392 0, 0.875 0.9333 0 0, 1 0.498 0 0 )
    set size ratio -1
    splot 'out' t ""

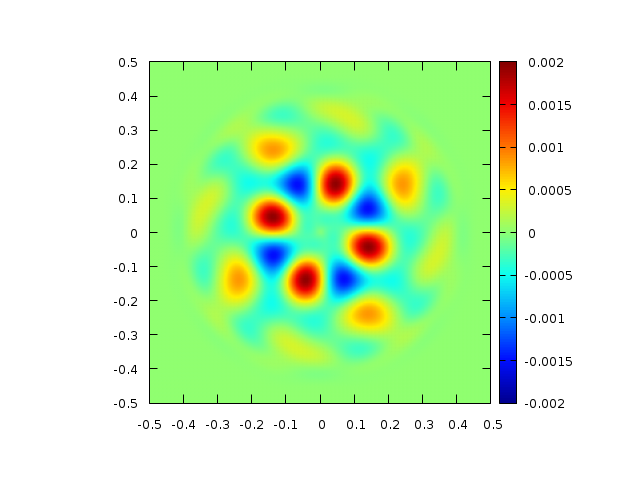

    Error field after one rotation for N=256 (script)

    Error field after one rotation for N=256 (script)

    reset
    ftitle(a,b) = sprintf("%.0f/x^{%4.2f}", exp(a), -b)
    f(x)=a+b*x
    fit f(x) 'log' u (log($1)):(log($4)) via a,b
    f2(x)=a2+b2*x
    fit f2(x) 'log' u (log($1)):(log($2)) via a2,b2
    set xlabel 'Maximum resolution'
    set ylabel 'Maximum error'
    set logscale
    set cbrange [1:2]
    set xrange [32:512]
    set xtics 32,2,512
    set grid ytics
    plot 'log' u 1:4 t 'max', 'log' u 1:2 t 'norm1', \
         exp(f(log(x))) t ftitle(a,b), exp(f2(log(x))) t ftitle(a2,b2)
    Error as a function of resolution (script)

    Error as a function of resolution (script)

    We use the advection solver with a single tracer f.

    #include "grid/cartesian.h"
    #include "advection.h"

    scalar f[];
    scalar * tracers = {f};

    We impose no normal flux on the box boundaries.

    u.n[left]   = 0.;
    u.n[right]  = 0.;
    u.n[top]    = 0.;
    u.n[bottom] = 0.;

    int main()
    {
      // coordinates of lower-left corner
      origin (-0.5, -0.5);
      // maximum timestep
      DT = .1;
      // CFL number
      CFL = 0.8;

    The spatial resolution varies from 64 to 256 points per box size to study spatial convergence.

      for (N = 64; N <= 256; N *= 2)
        run ();
    }

    The initial tracer field is a somewhat complicated but compact and smooth function.

    double bump (double x, double y)
    {
      double k = 20., a = 20000.;
      double r2 = x*x + y*y;
      double coeff = 20. + a*r2*r2*r2*r2;
      return (1. + cos(k*x)*cos(k*y))*exp(-coeff*r2)/2.;
    }

    event init (i = 0)
    {
      foreach()
        f[] = bump(x,y);
    }

    The advection velocity field is a simple solid rotation.

    event velocity (i++) {
      trash ({u});
      foreach_face(x) u.x[] = -8.*y;
      foreach_face(y) u.y[] =  8.*x;
    }

    We log statistics on mass conservation and errors after one full rotation.

    #define end 0.785398
    event logfile (t = {0,end}) {
      stats s = statsf (f);
      fprintf (stderr, "# %f %.12f %g %g\n", t, s.sum, s.min, s.max);
    }

    event field (t = end) {
      scalar e[];
      foreach()
        e[] = f[] - bump(x,y);
      norm n = normf (e);
      fprintf (stderr, "%d %g %g %g\n", N, n.avg, n.rms, n.max);

      if (N == 256)
        output_field ({e}, stdout, N);
    }
