sandbox/alimare/1_test_cases/distance.c

    Distance field computation from a 3D model

    The goal is to build the skeleton of a 3D CAD model.

    #include "grid/octree.h"
#include "utils.h"
#include "distance.h"
#include "fractions.h"
#include "view.h"
#include "../thinning.h"
int n_part = 0;
#include "../../Antoonvh/scatter.h"
#include "../../aberny/output_stl.h"



int main()
{
  system ("test -f Jaekelopterus.stl || "
  "wget \"https://drive.google.com/uc?export=download&id=1x3b3oc-GFDw4VWd4n3i2YFg5bLwlFdWO\" -O Jaekelopterus.stl");


  coord * p = input_stl (fopen ("Jaekelopterus.stl", "r"));
  // taken from https://www.thingiverse.com/thing:4702654
  coord min, max;
  bounding_box (p, &min, &max);
  double maxl = -HUGE;
  foreach_dimension()
    if (max.x - min.x > maxl)
      maxl = max.x - min.x;

  init_grid (8);
  size (1.2*maxl);
  origin ((max.x + min.x)/2. - L0/2,
    (max.y + min.y)/2. - L0/2,
    (max.z + min.z)/2. - L0/2);

    We initialize the distance field on the coarse initial mesh and refine it adaptively until the threshold error (on distance) is reached.

      scalar d[];
  distance (d, p);
  while (adapt_wavelet ({d}, (double[]){3.e-4*L0}, 11).nf);

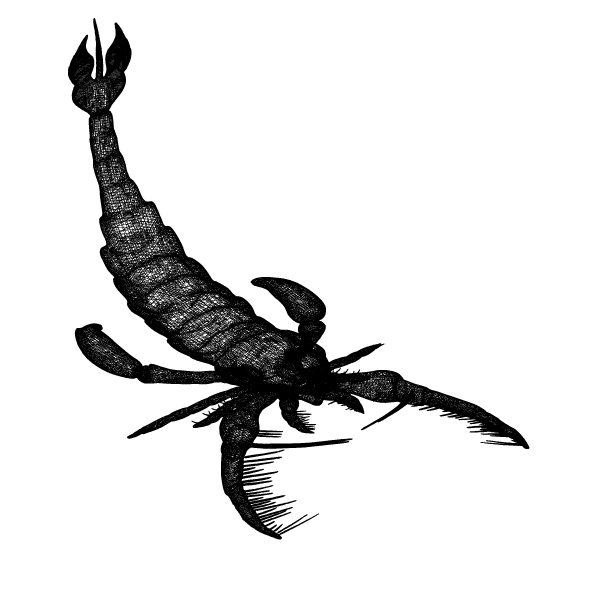

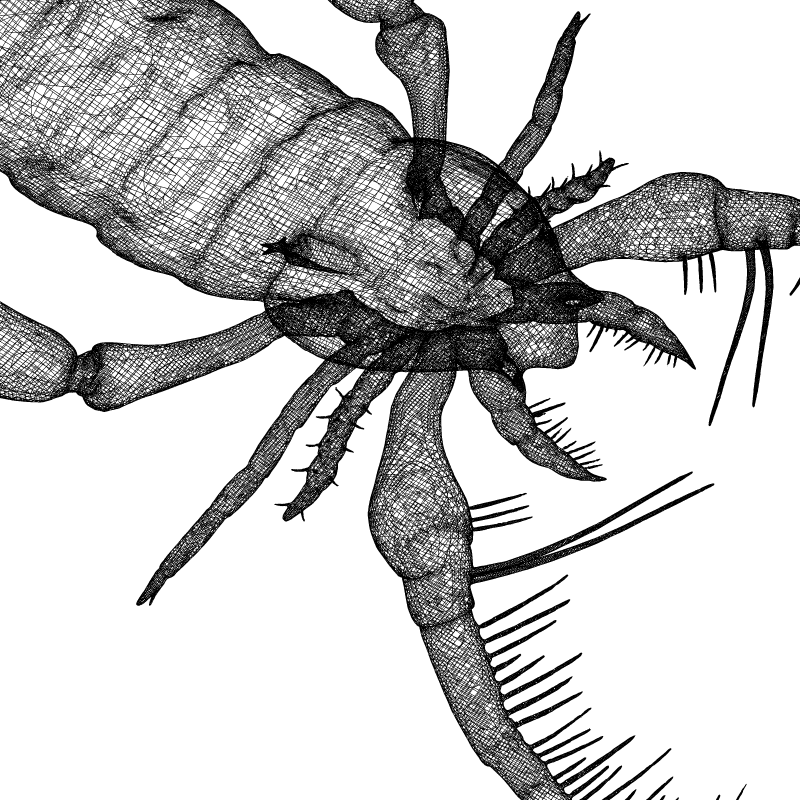

    We also compute the volume and surface fractions from the distance field. We first construct a vertex field interpolated from the centered field and then call the appropriate VOF functions.

      vertex scalar phi[];
  foreach_vertex()
    phi[] = (d[] + d[-1] + d[0,-1] + d[-1,-1] +
       d[0,0,-1] + d[-1,0,-1] + d[0,-1,-1] + d[-1,-1,-1])/8.;
  boundary ({phi});
  scalar f[];
  face vector s[];
  fractions (phi, f, s);

  // clear();
  view (fov = 17.1577, quat = {0.509824,-0.191867,-0.256451,0.798436}, tx = -0.0771716, ty = -0.131169,
    width = 600, height = 600, bg = {1,1,1});

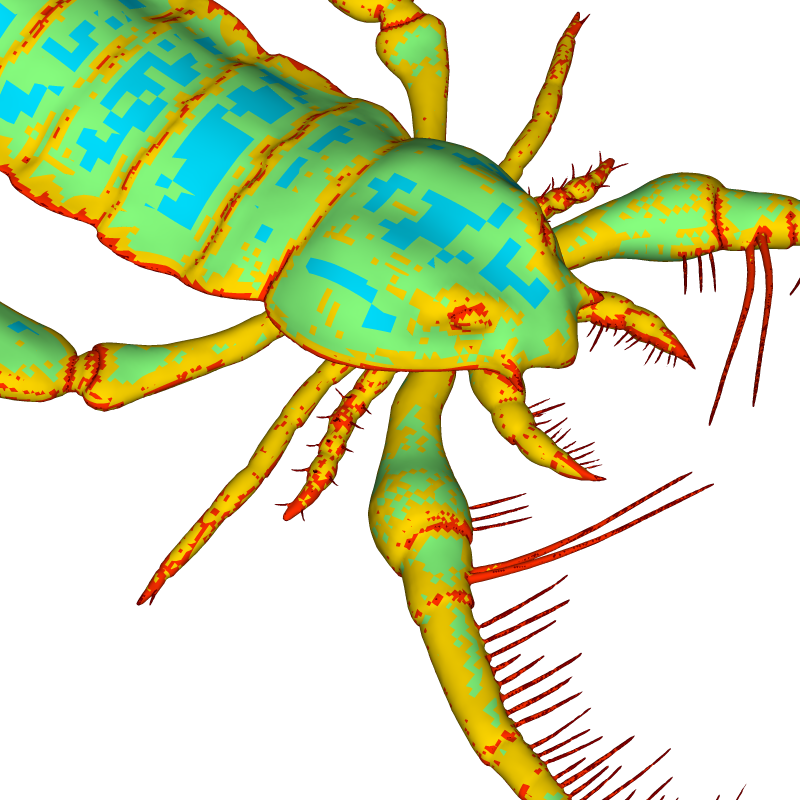

    We display an isosurface of the distance function coloured with the level of refinement and the surface reconstructed from volume fractions.

      isosurface ("d", 0, color = "level", min = 5, max = 11);
  save ("Jaekelopterus.png");
  draw_vof ("f", "s", edges = true, lw = 0.5);
  save ("vof.png");

  view (fov = 8.76256, quat = {0.297217,-0.150457,-0.437522,0.835224}, tx =
    -0.0413951, ty = 0.0647216);
  draw_vof ("f", "s", edges = true, lw = 0.5);
  save ("vof2.png");
  isosurface ("d", 0, color = "level", min = 5, max = 11);
  save ("Jaekelopterus2.png");

  scalar c[];
  foreach(){
    if(f[])c[] =1;
    else c[] = 0;
  }
  boundary({c});
  thinning3D(c);

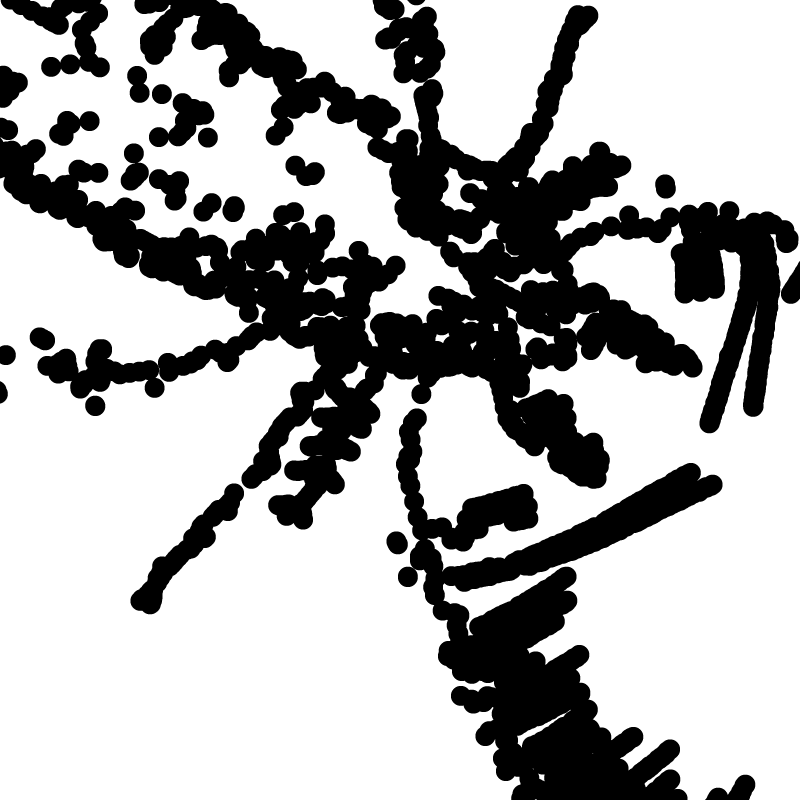

    To output the skeleton, we will use the Lagrangian particles of Antoonvh, the remaining cells will be shown as spheres.

      Cache skeleton = {0};

  foreach(){
    if(c[]){
      cache_append (&skeleton, point, 0);
      n_part++;
    }
  }

  coord * loc = malloc (n_part*sizeof(coord));
  int n = 0;
  foreach_cache(skeleton) {
    coord cc = {x, y, z};
    foreach_dimension()
      loc[n].x = cc.x;
    n++;
  }
  view (fov = 17.1577, quat = {0.509824,-0.191867,-0.256451,0.798436}, tx = -0.0771716, ty = -0.131169,
    width = 600, height = 600, bg = {1,1,1});
  scatter(loc, s = 40);
  save("medial_axis.png");
  view (fov = 8.76256, quat = {0.297217,-0.150457,-0.437522,0.835224}, tx =
    -0.0413951, ty = 0.0647216);
  scatter(loc, s = 40);
  save("medial_axis2.png");

  free (loc);
  free (skeleton.p);
  stl_output_binary(f, "f_field.stl");
}

    We correctly detect the spikes on the claws of our creature and so it should be able to eat well, the thinning algorithm seem to behave in these parts.

    However, the thinning operation is more noisy on the shell of the creature, maybe a topological analysis with persistance diagram would give better results in these regions.

    Isosurface of the distance function coloured with level of refinement VOF Skeleton
